DFX-615

DFX-6 Series

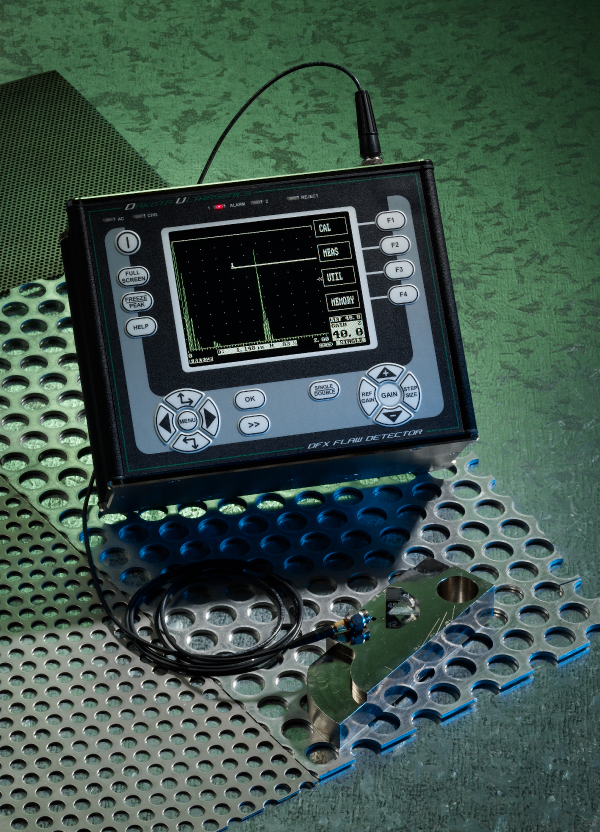

The DFX Series digital ultrasonic flaw detectors have been designed to meet a variety of application requirements, according to feature sets and performance requirements. There are 4 models to select from, according your application demands. These are packaged in an all aluminum housing for rugged working environments.[toggle_container][toggle title=”Learn More » “] The DFX series ultrasonic flaw detectors are full featured digital scopes designed to handle the simplest to the most difficult applications. Whether the application requires high penetration for materials that are difficult to measure, or high resolution for precision aerospace parts, the DFX series flaw detectors are equipped with the necessary features to do the job. They can go where you go, to do the work you do, saving you time and money, making your inspections fast and accurate.[/toggle] [/toggle_container]

Features

Downloads
  • Transflective Color TFT Display
  • Broad & Narrow Band Amplifier
  • Square Wave Pulser (Active Edge)
  • Extruded Aluminium Case (IP65)
  • Digital Thickness Display
  • DAC/TCG/AWS/DGS
  • Automatic Calibration
  • PC/Video/Analog Outputs
  • Long Battery Life (Li-ion pack)
  • Large Memory Capacity
  • Curved Surface Correction
  • Alphanumeric Notes
  • Trig function
  • Help feature
 [button link=”http://www.dakotaultrasonics.com/specs/DFX6web.pdf” style=”alert” color=”#222222″ text=”light” window=”yes”]View Specs[/button]
[button link=”http://www.dakotaultrasonics.com/manuals/DFX615v10man.pdf” style=”alert” color=”#222222″ text=”light” window=”yes”]View Manual[/button] Get Acrobat ®

Specifications
Physical

  • Size:9.25 x 7.13 x 4.0 in (235 x 181 x 102mm)
  • Weight:7.5lbs. (3,4Kgs) with Li-Ion cells.
  • Case: Extruded Aluminum.
  • Display: Transflective TFT Color. Display area: 4.39″ x 3.29″ (111.4 x 83.5mm) 320 x 240 pixels. A-Scan area: 255 x 200 pixels (315 x 200 expanded), 8 color options and variable brightness.
  • Temperature:Operating -10 to +55°C or 14 to 131°F
    -20 to +70°C or -4 to 158°F(survivable)Storage -40 to +75°C or -40 to 167°F
  • Environmental: Meets IP65 requirements.

Specifications

  • Units: English (in), Metric (mm), or Time (µs).
  • Probe Zero: 0-999.999 µs.
  • Velocity: 0.0393 to 0.3937 in/µs (1000-9999m/s).
  • Test Range:  0 – 0.2in (5mm) up to 0 – 400in (10,000mm) at steel velocity. Variable in sequence, 0.4in or 0.04in (10mm or 1mm).
  • Test Modes: Pulse-echo and transmit/receive.
  • Gates: Start & Width adjustable over full range. Amplitude 0 -100%, 0.5% steps. Visual & audible alarms. Single gate positive trigger, and two gates positive and negative triggering. Gate 2 has selectable 0.6 second delay on alarm.
  • Depth – Depth and amplitude of signal in gate.
  • Echo Echo – Echo-Echo distance, automatic gate 2 position.
  • Trig – Trigonometric display of beam path, depth and surface distance. Calculation of skip depth and curve surface compensation, X-offset for transducer.
  • T-Min – Holds minimum thickness in depth mode.
  • System Linearity: Vertical = 1% Full Screen Height (FSH) Amplifier Accuracy±0.1%dB. Horizontal ±0.4% Full Screen Width (FSW).
  • Pulser Voltage: 200 volt peak amplitude, rise/fall time < 10ns into 50ohm.
  • Pulser Width:fixed at 100ns.
 Specifications

  • ActiveEdge: Unique active pulse control for enhanced near surface resolution and signal response. Replaces traditional damping control.
  • P.R.F.: Selectable 35 to 1000Hz, 5Hz steps.
  • Screen Update Rate: 50 or 60Hz.
  • Rectification: Full wave, positive or negative half wave and unrectified RF.
  • Delay:0 – 400 in (10,000mm)
  • Gain: 0 to 110dB. Adjustable in 0.5, 2, 6, 14 and 20dB steps.
  • Frequency Bands: 4Broadband 1 – 10 MHz (-6dB).
  • Vertical Linearity: 1% full screen height.
  • Amplifier Linearity: +/- 0.1 dB.
  • Horizontal Linearity: +/- 0.4% full screen width (FSW).
  • Reject: 50% suppressive reject. LED warning when selected.

Memory

  • Thickness Logging: Storage for 8000 readings stored in Block/Location/Number coding or alpha-numeric pre-programmed work sheets. Transferable to Excel using optional PC software.
  • Panel Memory: 100 storage locations for calibration settings.
  • A-Scan Memory: 800 waveforms.

Features

  • Wave Smoothing: Produces a smooth signal envelope.
  • AGC: Automatic Gain Control sets selected echo to a user defined level (10 – 90%).
  • DAC: Up to 10 points may be entered and used to digitally draw a DAC curve. Reference -2, -6, -10, -12, -14 dB curves can be selected for JIS, ASME and EN1714 codes.
  • AWS: Automatic defect sizing in accordance with AWS D1.1 Structural Welding Code.
 Features

  • API: Automatic defect sizing in accordance with API 5UE.
  • AVG/DGS: Automatic defect sizing using probe data. 10 probe data sets can be stored.
  • Auto-Cal: Provides Automatic calibration with two echoes.
  • Reference Waveform: Recalled waveform can be shown in a different color to live waveform for direct comparision.
  • Display Freeze: Hold current waveform on screen.
  • Peak Memory: For echodynamic pattern determination.
  • Online Help: Instant operator guidance on operation accessed from direct key.
  • Language Support: Six user selectable languages from: English, German, French, Spanish, Dutch, Italian, Russian, Polish, Czech, Finnish & Hungarian. Others available on request.

Power Source:

  • Battery: Lithium Ion battery pack 14.4V,
  • 5.0 Amp hrs. Minimum 11 hours use, typical 15 hours, indication of battery charge. Recharge time 4 hours.Charger: 100 – 240 VAC, 50 – 60Hz.

Connections

  • USB: For connection to PC, keyboard and printer.
  • Outputs: Serial Interface, composite video (NTSC & PAL), analog output for amplitude and distance updated at PRF rate. Transmitter sync output.
  • Transducer Connectors: available withBNC or LEMO 1 connectors (factory option).

Warranty

  • 2 year limited
